Choose the door you love. Understand the box behind it.
Start with color, then compare how each cabinet series is built. Save the doors you like and GIS will confirm samples, availability, layout, and pricing before anything is ordered.
Available colors and grains
Wood looks include their natural grain. Paint, matte, and gloss finishes are labeled so customers can compare the right kind of surface.
Dove White
Painted finishAll-wood framed · Full overlayGrey Shaker
Painted finishAll-wood framed · Full overlayMicro White Shaker
Painted finishAll-wood framed · Full overlayHoney Wheat
Visible wood grainAll-wood framed · Full overlayMicro Honey Wheat
Visible wood grainAll-wood framed · Full overlayModern Slate
Painted finishAll-wood framed · Full overlayMidnight Blue
Painted finishAll-wood framed · Full overlayOnyx Black
Painted finishAll-wood framed · Full overlayOak
Visible wood grainBirch frameless · Full overlayWalnut
Visible wood grainBirch frameless · Full overlayGlossy White
High-gloss finishBirch frameless · Full overlayMatte Gray
Matte finishBirch frameless · Full overlayMatte White
Matte finishBirch frameless · Full overlayMatte Black
Matte finishBirch frameless · Full overlayWhite
Painted finishPremier plywood · Full overlayOak
Visible wood grainPremier plywood · Full overlayClassic Walnut
Visible wood grainPremier plywood · Full overlayBright White
Painted finishPremier plywood · Full overlayMidnight
Painted finishPremier plywood · Full overlayModern Gray
Painted finishPremier plywood · Full overlaySlate
Painted finishPremier plywood · Full overlayFawn
Painted finishPremier plywood · Full overlayPearl
Painted finishPremier plywood · Full overlayDesigner White - 5-piece
Painted finishPremier plywood · Full overlayDesigner White - slab front
Painted finishPremier plywood · Full overlaySand
Painted finishPremier plywood · Full overlayKodiak
Painted finishPremier plywood · Full overlayMoss
Painted finishPremier plywood · Full overlayWhite
Painted finishBuilder hybrid · Partial overlayGray
Painted finishBuilder hybrid · Partial overlayWhat each cabinet box is made from
These are the actual box, drawer, slide, door, hinge, shelf, finish, and frame specifications from the supplied catalogs—organized so you can compare them without decoding a technical diagram.

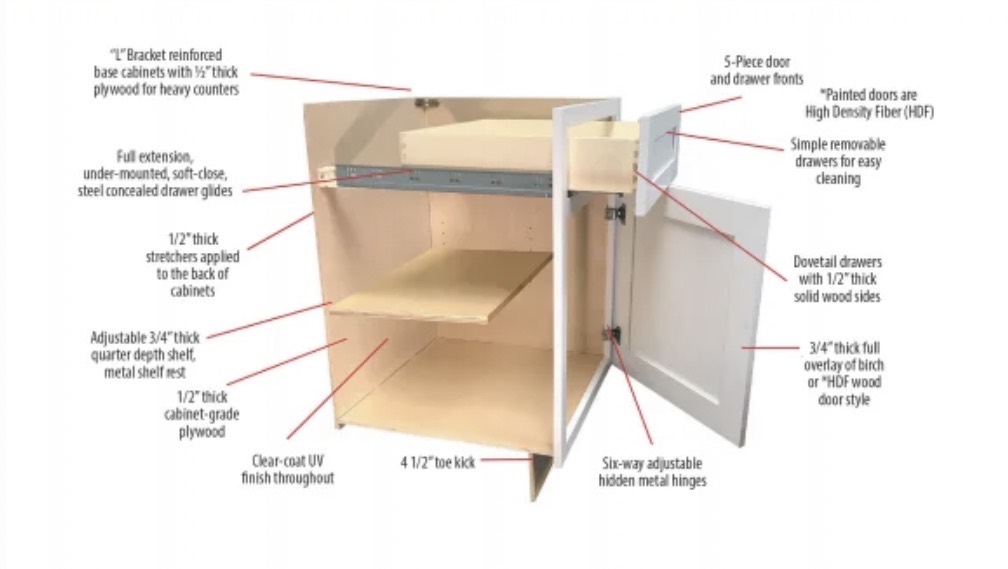

Framed all-wood Shaker box
Tap to view the full diagramCabinet-grade plywood construction with reinforced base cabinets, full-extension soft-close hardware, and a clear-coat UV interior finish.
- Cabinet box
- 1/2" cabinet-grade plywood with 1/2" back stretchers and clear-coat UV finish throughout.
- Heavy-top support
- Base cabinets are reinforced with “L” brackets and 1/2" plywood for heavy stone countertops.
- Drawer box
- Removable dovetail drawers with 1/2" solid-wood sides for easier cleaning.
- Drawer slides
- Full-extension, undermount, concealed steel soft-close glides.
- Doors
- 3/4" full-overlay birch or HDF 5-piece door and drawer fronts; painted doors use HDF.
- Hinges
- Six-way adjustable, hidden metal hinges.
- Shelves
- Adjustable 3/4" quarter-depth shelves with metal shelf rests.
- Toe kick
- 4 1/2" toe-kick height.

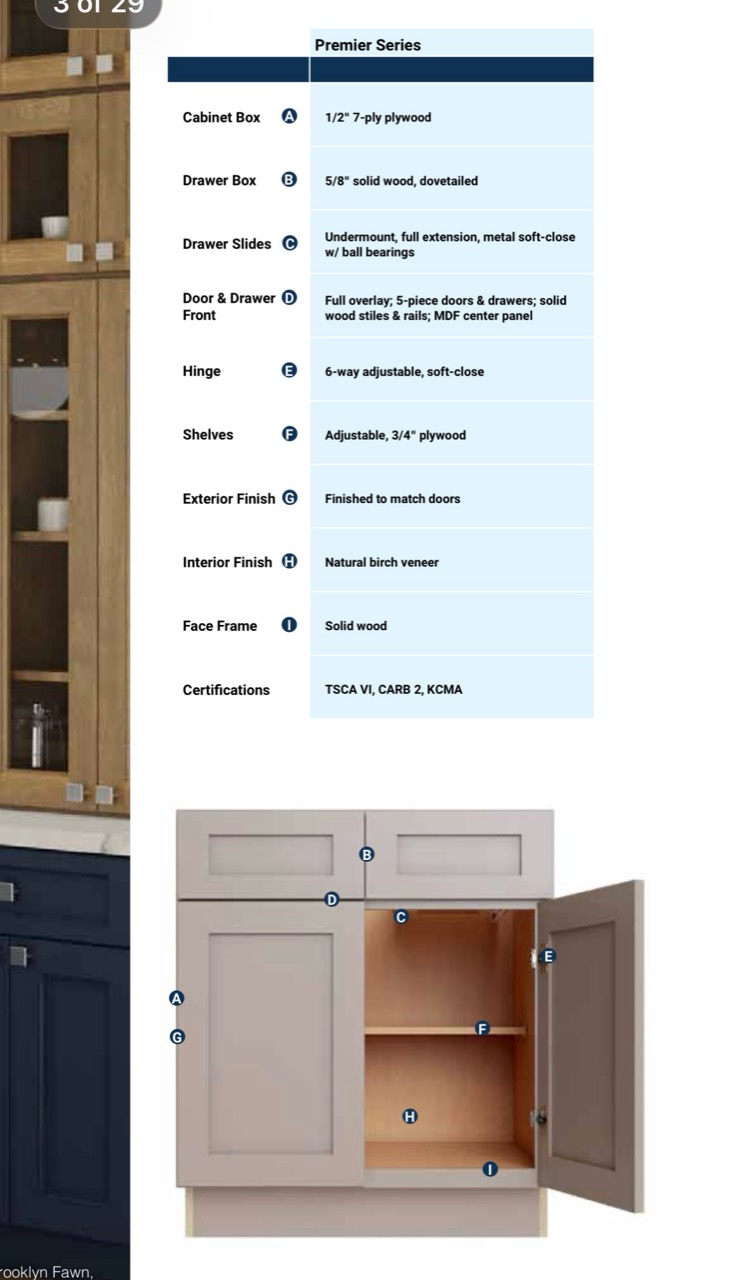

Premier Series box
A premium framed cabinet with a 7-ply plywood box, natural birch veneer interior, solid-wood face frame, and full-extension soft-close hardware.
- Cabinet box
- 1/2" 7-ply plywood.
- Drawer box
- 5/8" solid wood, dovetailed.
- Drawer slides
- Undermount, full-extension, metal soft-close with ball bearings.
- Door & drawer front
- Full overlay; 5-piece doors and drawers; solid-wood stiles and rails; MDF center panel.
- Hinges
- Six-way adjustable, soft-close.
- Shelves
- Adjustable 3/4" plywood.
- Exterior finish
- Finished to match doors.
- Interior finish
- Natural birch veneer.
- Face frame
- Solid wood.

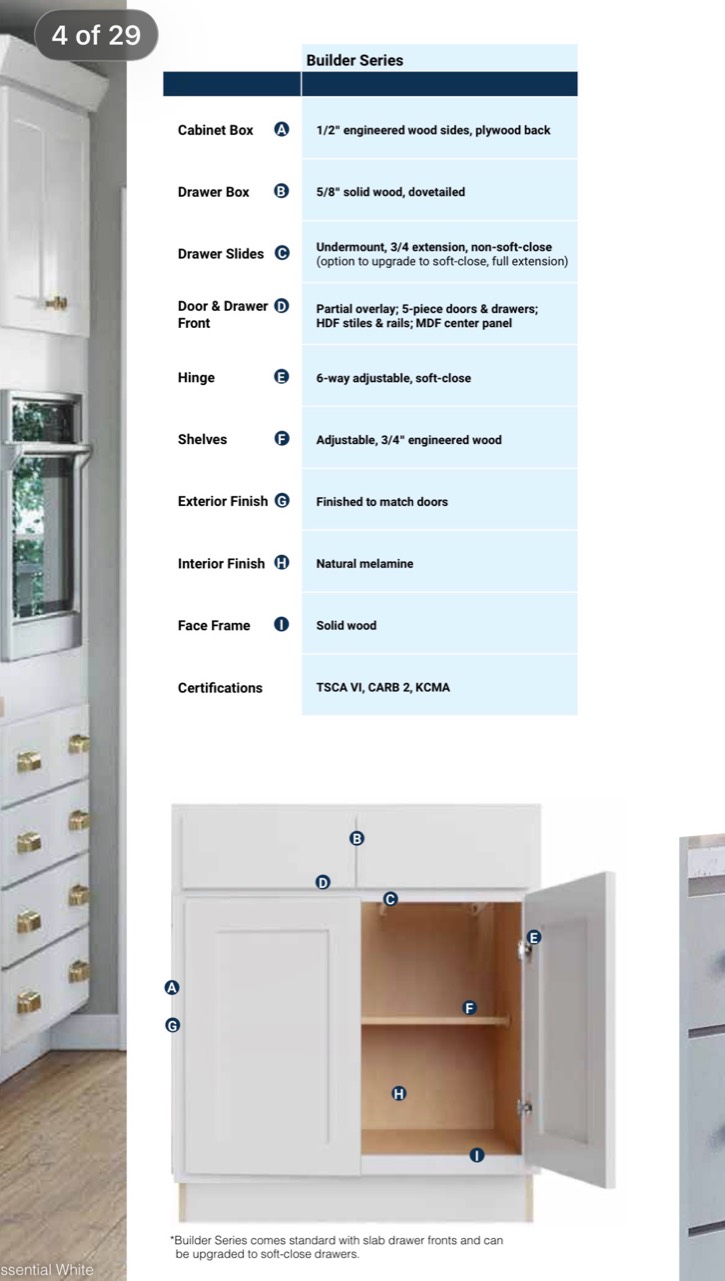

Builder Series box
A value-focused framed cabinet with engineered sides, plywood back, solid-wood face frame, and natural melamine interior.
- Cabinet box
- 1/2" engineered-wood sides with a plywood back.
- Drawer box
- 5/8" solid wood, dovetailed.
- Drawer slides
- Undermount, 3/4-extension, non-soft-close; upgrade available to soft-close, full-extension.
- Door & drawer front
- Partial overlay; 5-piece doors and drawers; HDF stiles and rails; MDF center panel.
- Hinges
- Six-way adjustable, soft-close.
- Shelves
- Adjustable 3/4" engineered wood.
- Exterior finish
- Finished to match doors.
- Interior finish
- Natural melamine.
- Face frame
- Solid wood.
Modern frameless birch box
A clean European-style cabinet with no face frame, wide interior access, and doors that cover the cabinet edge.
- Cabinet box
- Birch construction with 3/4" side panels and bottom.
- Back & reinforcement
- 1/4" MDF back panel supported by 3/4" rear reinforcement rails.
- Drawer system
- Double-wall, soft-closing metal drawers.
- Doors
- 3/4" full-overlay doors; the door core varies with the selected laminate finish.
- Shelves
- Adjustable 3/4" shelf construction.
- Exposed sides
- Matching finished end panels are added wherever the cabinet side is visible.
Save colors now. We will help with the hard parts.
You do not need cabinet codes or technical measurements to get started.
